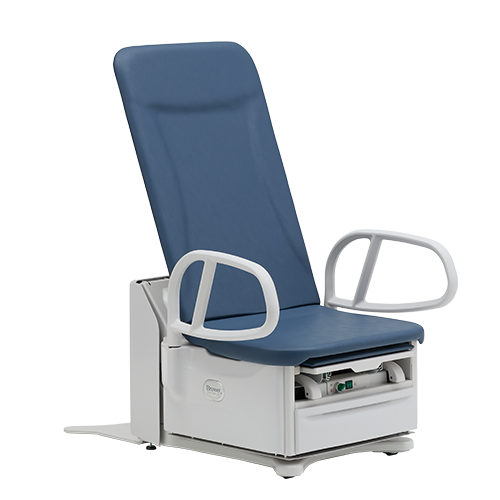

FLEX™ High-Low PLUS Power Exam Table with 17″ Seat Height

Accessible Design. Future-Ready.
Meet the FLEX PLUS with 17″ low transfer height. Compliant with today’s ADA standards & designed to align with tomorrow’s accessibility goals.

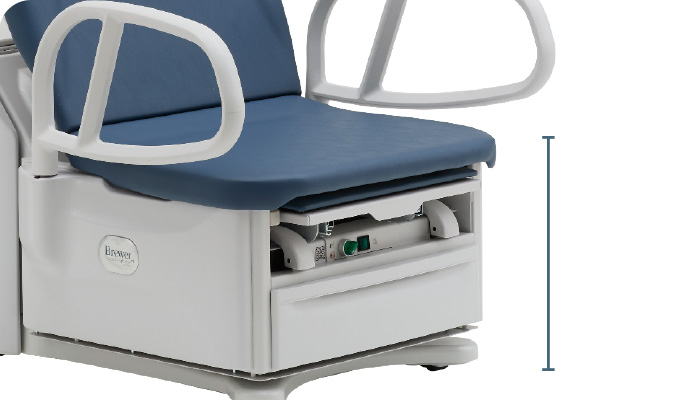

17″ Low-Transfer Height
Built for future-forward facilities seeking alignment with the Access Board’s 2024 low transfer height recommendation.

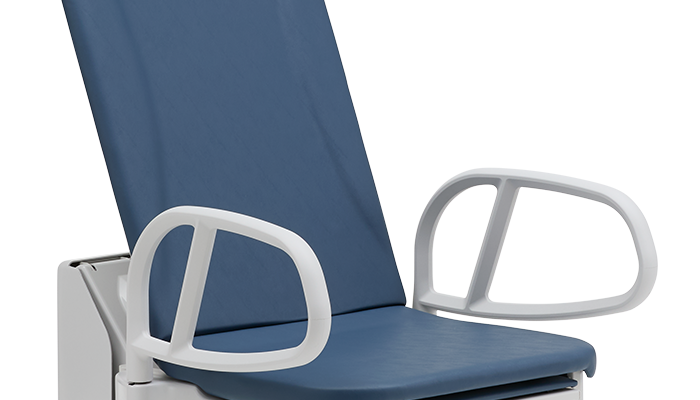

Compliant Assist Handles
Designed for patient support during transfers and movement, fully compliant with ADA 505.7 assist handle standards.

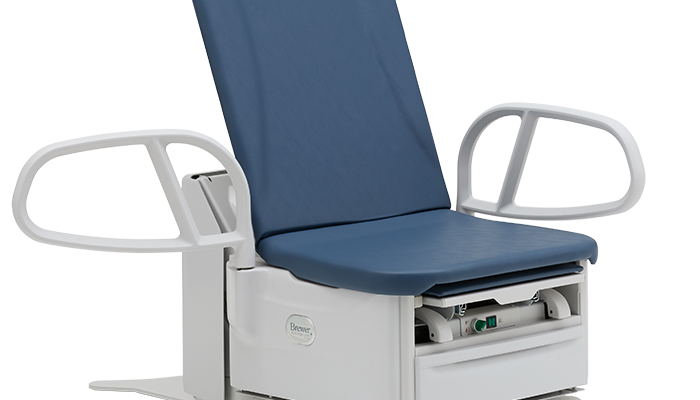

Two-Side Transfer Access
Designed to enable side and front transfers, meeting ADA requirements for two-side accessibility and patient safety.

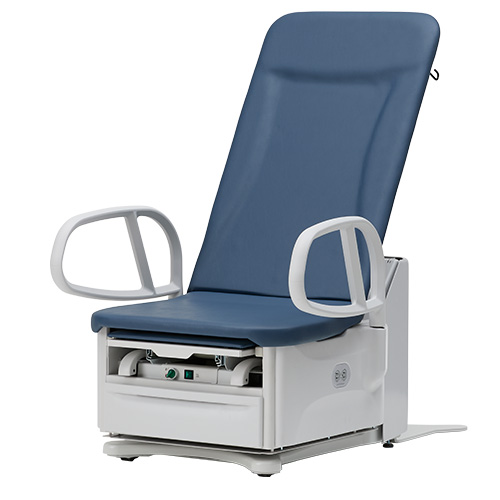

ComfortGrip™ Patient Assist Handles deliver greater stability and support, allowing patients to transfer and reposition with confidence.

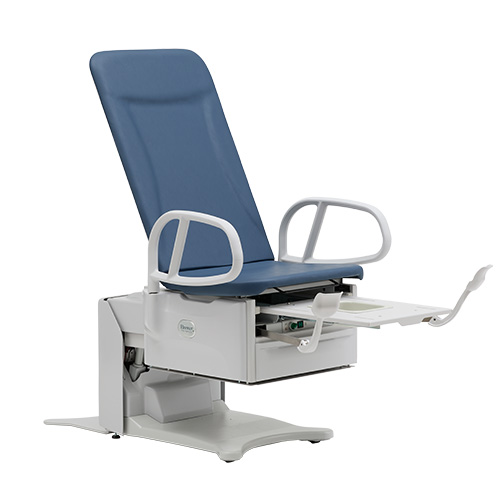

Women’s health package option with pelvic tilt, drawer warmer and ergonomic stirrups.

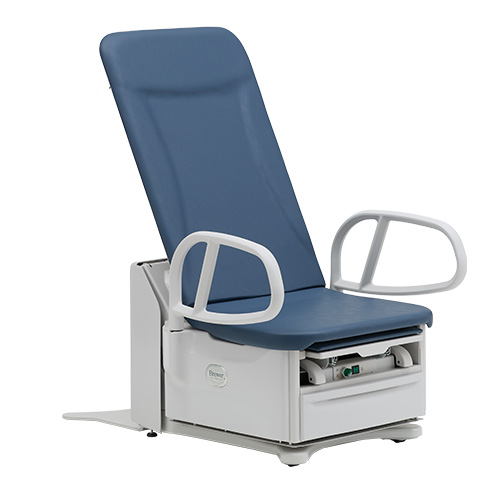

Enhance accessibility and comfort with a 700-pound weight capacity and expanded height adjustability.

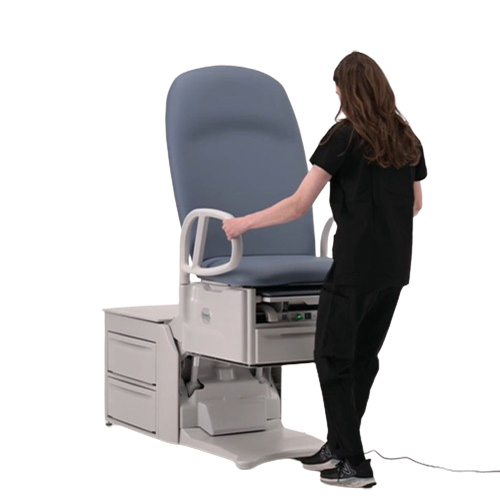

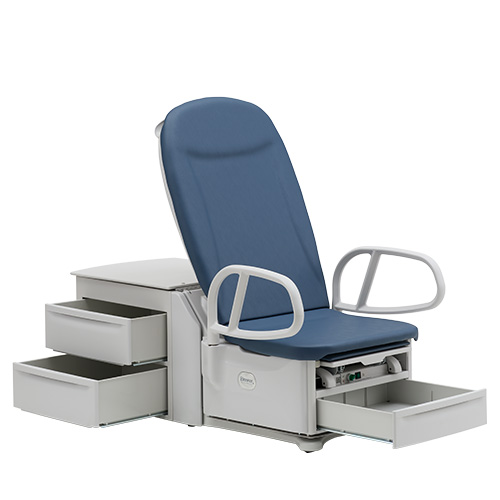

As with the FLEX PLUS, EasyGlide Mobility can be added to our 17″ low transfer height table. (Access PLUS table shown in picture)

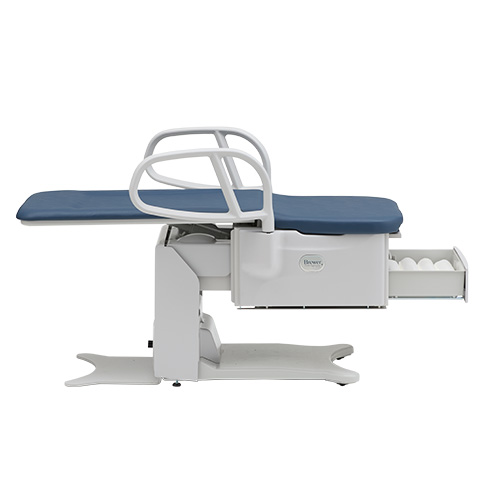

Unmatched ergonomic design provides clinicians with easy, unobstructed access to the patient.

Product Details & Resources

Table Specifications

Weight capacity: 700 lbs. (317 kg)
Seat Height: 17″-37″ (43.2 cm-94 cm)
Length: 57″; extendable to 78″ (144.8 cm-198.1 cm)
SafeGlide™ leg extension length: 21″ (53.3 cm)
Upholstery width: 27.5″ (69.9 cm)
Front storage drawer: 19.75″ x 19.25″ x 4″ (50.2 cm x 48.9 cm x 10.2 cm); accommodates up to six 18″ paper rolls
115/230 VAC, 50/60 Hz
Hospital grade outlet standard
5° pelvic tilt / 60 Watt front drawer heater
Easy-to-clean, seamless upholstery in 12 colors
Foot control
3-year warranty

Available Models
5700 – FLEX Access Exam Table with pneumatic back
5701 – FLEX Access Exam Table with pneumatic back, stirrups, pelvic tilt, front drawer heater and outlet
5800 – FLEX Access Exam Table with power back
5801– FLEX Access Exam Table with power back, stirrups, pelvic tilt, front drawer heater and outlet
Optional Kits
2102894PLUS – Stirrups for 5700PLUS and 5800PLUS (set of two, factory installed)
2102898PLUS – Stirrups for 5700PLUS and 5800PLUS (set of two, field installed)
2102891PLUS – Patient Assist Handles (set of two, factory installed)
2102895PLUS – Patient Assist Handles (set of two, field installed)
17″ Low-Transfer Seat Height Option
(choose model above, then add one of below)
5715PLUS17-STD – 17″ low-transfer height in standard color
5715PLUS17-SP – 17″ low-transfer height in special color
3500687PLUS – EasyGlide Mobility System
100407PLUS – Front Door Dividers
99505 – Stainless Steel Treatment Pan
99502 – Universal Socket Clamp (Qty. 1)
99504 – Deluxe Articulating Knee Crutches **
100253-TG – Urology Drain Pan System
100407PLUS – Front Drawer Dividers (can order up to 7)
100540 – Two Knee Crutch Support Adaptors (plant installed)
100550 – Two Knee Crutch Support Adaptors (field installed)
102031PLUS – Brewer Welch Allyn® Light IV Bracket (plant installed)
102032PLUS – Brewer Welch Allyn® Light IV Bracket (field installed)
** Needs two #99502 and one of either #100540 or #100550
Chateau Grey – AF906
Flannel –
AF945
Horizon –
AF928
Mist –
AF938
Black Satin –
PR40
Cool Grey –
MV821
Eclipse –
AF919
Blue Fog –
PR46
Cocoa –
PR51
Cabernet –
PR36
Feather –
PR37
Deep Sapphire –
PR55
Gunmetal –
0492
Clamshell –
PR57
Ivy –
PR53
This product is available in many other colors.
Colors may differ depending on your screen.
Request a physical sample by contacting us via the request a swatch page or our customer service phone number.

Product Manuals and Service Documents

Brewer Cleaning Guidelines
(715 KB)
FLEX High-Low Exam Table Operator’s Manual
(3.8 MB)
FLEX High-Low Exam Table Operator’s Manual – Spanish
(3.8 MB)
FLEX High-Low Exam Table Operator’s Manual – French Canadian
(3.9 MB)

Design & Planning

FLEX High-Low Revit Family
(2.7 MB)

Brochures & Catalogs

Sell Sheet
(537 KB)
Data Sheet
(1.2 MB)
Brewer Medical Catalog
(7.0 MB)
